Uee Series - Ultrasonic Thickness Gauge Uee932
Functions & Features
●High quality metal shell
●Precise measuring performance

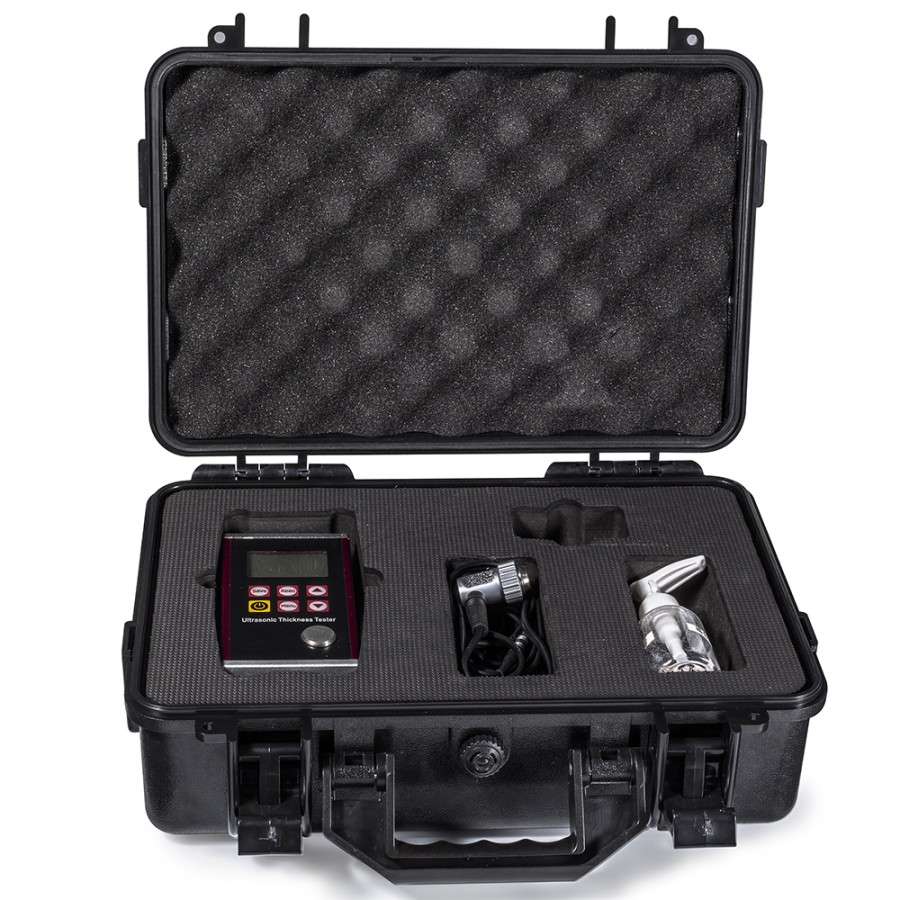

●with 2 probes (Standard probe and Angle probe)
●Integrated with a 4mm calibration block.
●Two display units: mm and inch.
●With coupling state indication.
●Measuring sound velocity: according to the known thickness of the object, sound velocity of it can be
measured directly.
●Software for PC connection and data transmission, analysis.
●3 years warranty and life-long services
Measuring Materials
● Adapted to all kinds of materials which are good conductor of ultrasonic wave, such as metals(steel, cast
iron, aluminum, copper and etc), plastic, ceramics, composites, epoxies, glass and etc.
Measuring range(mm): 0.75~350 (depend on probes)
Resolution(mm): 0.01
Accuracy(mm): ±(0.5%H+0.01) H refers to the thickness of testing piece
Velocity range(m/s): 1000~9999
Velocity measurement: √
Storage: 2000 Groups
Shell: Metal
Operating Temperature: -10°C~60°C
Dampness: 20%~90%
Dimensions(mm): 130mm x 70mm x 30mm
Power supply: 2 x AA
Weight (g): 300g
